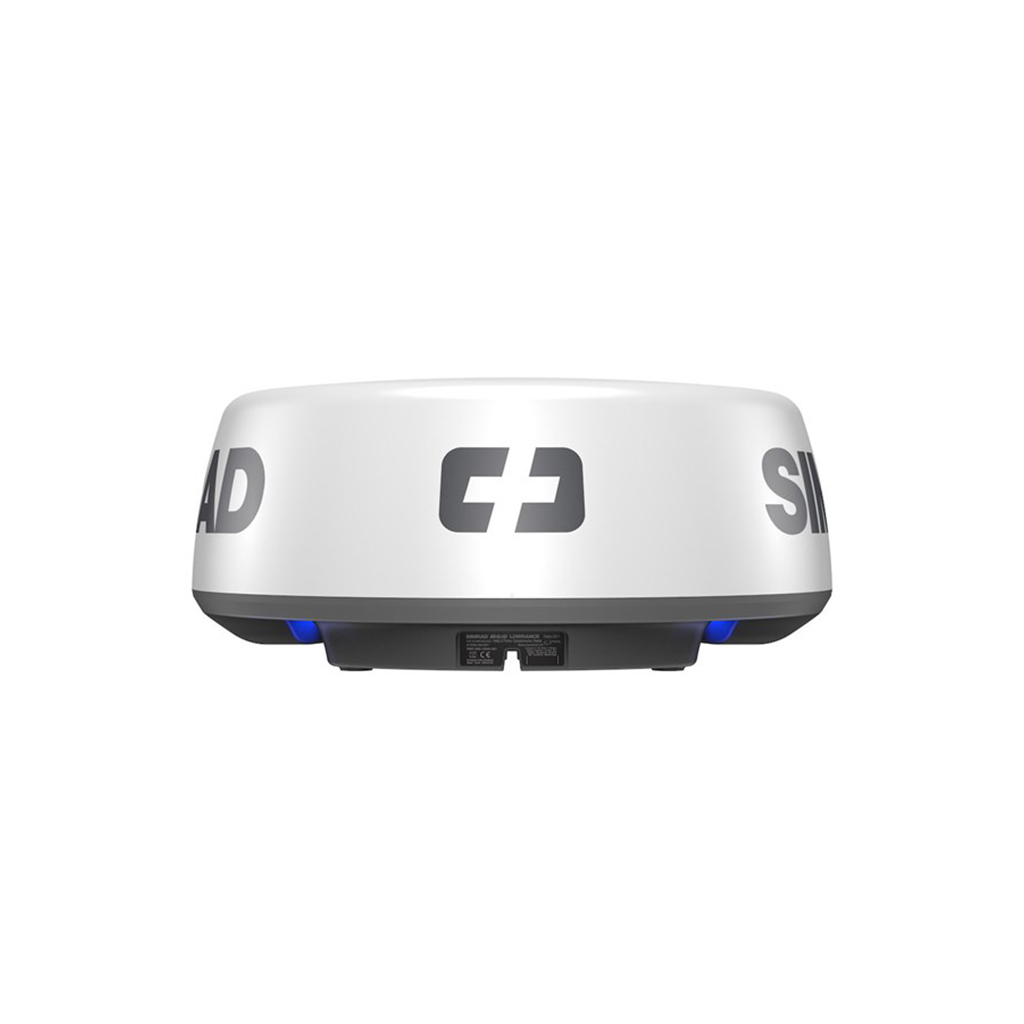

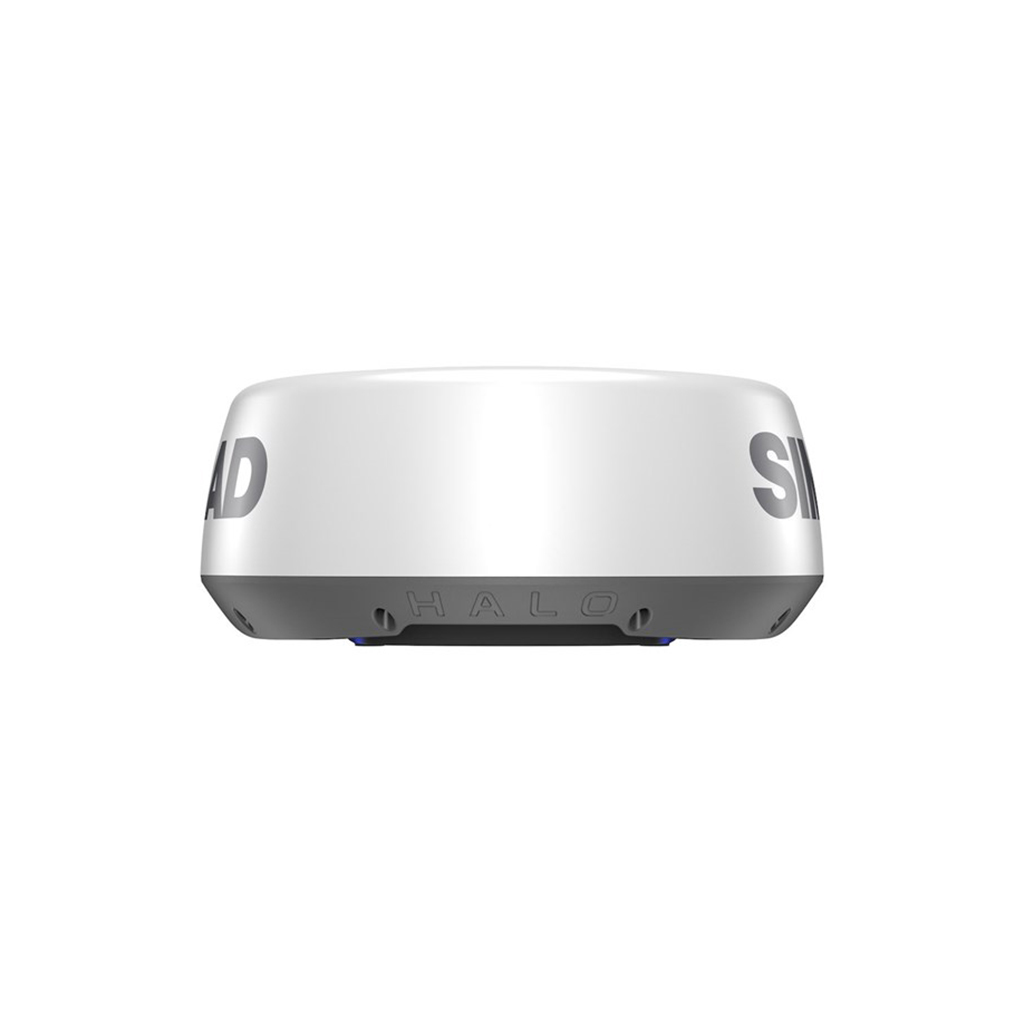

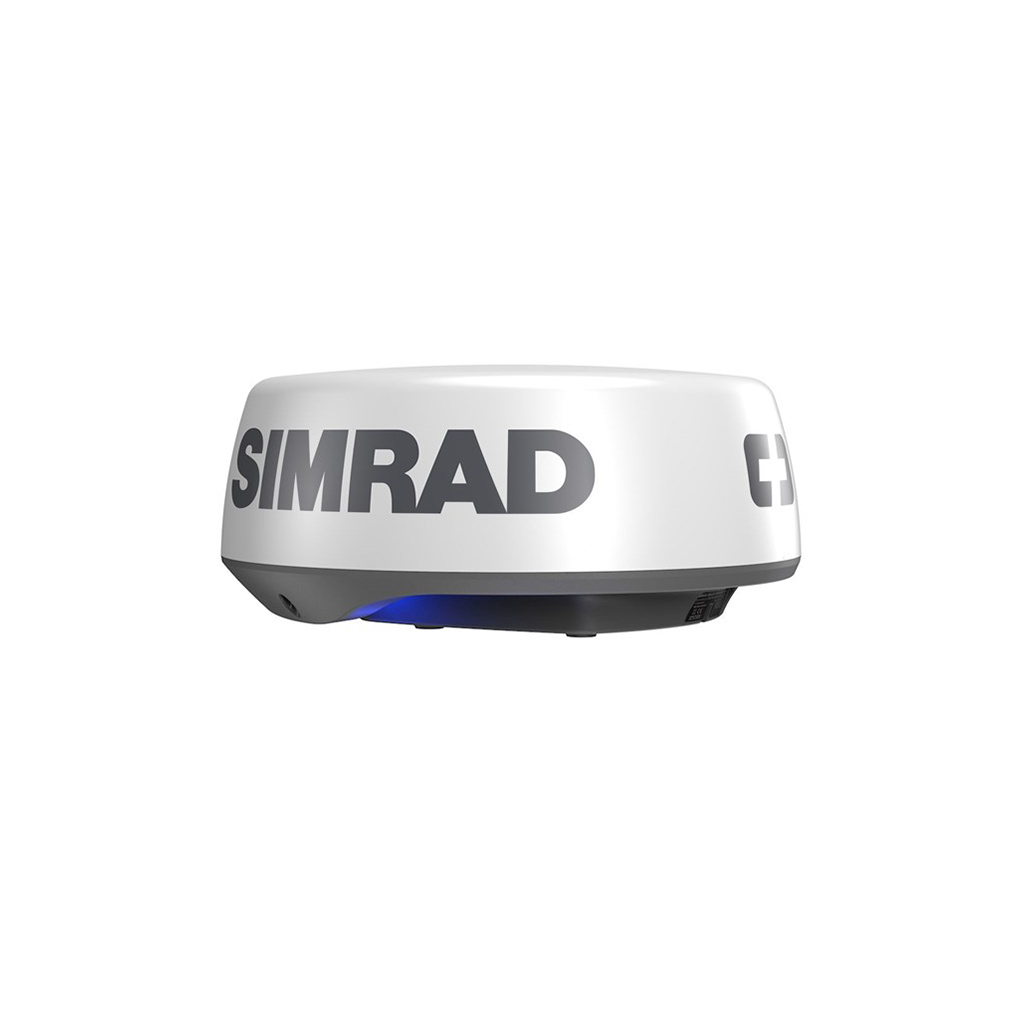

HALO24 Radar
HALO24 Radar
Featured Information
Dimensions W x H x D :
610mm dia x 225 mm H. (24" dia x 8.9" H)
Weight :
6.75 kg (14.9 lbs) without cable
HALO24 Radar
Physical
- Dimensions W x H x D : 610mm dia x 225 mm H. (24" dia x 8.9" H)
- Weight : 6.75 kg (14.9 lbs) without cable
ENVIRONMENT
- Humidity : 95% RH at 35°C (95°F)
- Operating Temperature Range: -25° to + 55°C (-13° to +130°F)
- Waterproofrating : IPX6
Approvals
- Approvals Compliance : FCC, Part 47 CFR 80 and 90: RED, Article 3 of Directive 99/5/EC: CE: EN, EN302-248 V2.1.1: Industry Canada, RSS238: RCM (C-Tick): IEC60945 Sec 9.2,9.3, 10.3-10.9, 11.2: IEC60950 Electrical Safety
Other
- Interface : Simrad MFD
- Warranty Period : 2 Years
ELECRTICAL
- Power Consumption Max : 29W
- Power Consumption typical : 20W
- Recommended Fuse Rating : 5A
- Supply Voltage : 10.5 - 31.2 VDC (12/24V systems)
Connectivity
- Ethernet Ports : 100 Base T
Radar
- Beam width : 3.9° H nonminal (-3dB) 2° with target separation on high x 22° V
- Max Range, scale : 48 NM
- Max Wind Speed : 100 knots (51 m/s)
- Min Range, scale : 50 m / 200 ft / 50 yd
- Radar Modes : Harbour, Offshore, Weather, Bird, Dual Range, North Up, Course Up, Relative motion, True Motion
- Radar Technology : Pulse Compression
- Rotation speed : Up to 60 RPM (Range Dependent)
HALO24 revolutionizes radar by offering an almost real-time view, with industry-first 60 RPM operation at close range for the ultimate in collision avoidance. Identify hazards in an instant with VelocityTrack™ Doppler technology, and enjoy simultaneous short and long-range coverage—up to 48 nautical miles—from one compact 24-inch dome antenna.
