Featured Information
FCB-350-AI
Analytics
- Cybersecurity Password protection, Password policy enforcement, IP filtering, IEEE 802.1X, Digest authentication, CA & self-signed certificates, Firewall
Environmental
- De-Icing\Defogging •De-fog: Yes, built in heaters •De-icing: No
- EMC CE marked (EN 55032 & EN 55035) , EN 61000-6-3, EN 50130-4, FCC Part 15 (subpart B, class A), RoHS, WEEE, UKCA, ICES-003, AS/NSZ CISPR 32
- Handling Shock ISTA 3A
- Humidity 0-95% relative humidity
- IP Rating (dust & water ingress) IP67, NEMA 4X
- Operating Temperature Range -40°C to 60°C/-40°F to 140°F (cold start)
- Storage Temperature Range -50°C to 85°C (-58°F to 185°F)
- Vandal Resistance IK10 (except lens and windows)
Measurement & Analysis
- Analytics Features Region entrance/Intrusion detection, Crossover/fence trespassing, CNN classifier
- Analytics Management Web-based configuration and management; masking of analytic detection areas, adjustable sensitivity, automatic responses, remote I/O control
Thermal Camera
- Array format •VGA: 640 × 512 •QVGA: 320 × 256
- f-number f/1.0
- Field of view (FOV) 34.1° × 27.3°
- Focal Length 6.3 mm
- Focus Athermalized, focus-free
- Image Uniformity Optimization Automatic flat field correction (FFC); thermal and temporal triggers
- Pixel Pitch 12 μm
- Sensitivity •VGA: <20 mK •QVGA: <30 mK
- Spectral Range 8 μm to 14μm
- Thermal AGC Region of Interest [ROI] Default, Presets, and User definable to ensure optimal image quality on subjects of interest
- Thermal Frame Rate •VGA: 30 Hz •QVGA: 8.3 Hz
- Thermal Image Settings Brightness, Contrast, Sharpness, Auto AGC, Digital Detail Enhancement (DDE), Gamma, Smart Screen Optimization
Compliance & Certifications
- Compliance CB Scheme IEC 62368-1:2018, comply with IEC62368-1:2020+A112020
General
- Detector Type Long-life, uncooled, sun-safe VOx microbolometer
- Dimensions (L x W x H) 378 × 96.9 × 85.4 mm (14.9 × 3.8 × 3.4 in)
- Effective Resolution •VGA: 327,680 pixels •QVGA: 81,920 pixels
- Input Voltage •PoE+ (802.3at), heater off: 6.8 W •PoE+ (802.3at), heater on (@ 100%): 13.5 W •12 VDC, heater off: 7.2 W •12 VDC, heater on (@ 100%): 12.4 W •24 VAC (VA), heater off: 7.0 W •24 VAC (VA), heater on (@ 100%): 12.5 W
- Part Number 427-2064-30-00
- Warranty Camera: 3 years / Sensor: 10 years
- Weight 2.34 kg
System Integration
- Audio 1 × Line Input, G.711 a-law/μ-law, AAC support + 1 × Line Output
- Control Input/Output 1 × dry contact in; 1 × relay out (rated load: 0.025 A @ 5 VDC)
- Ethernet 10/100/1000 IEEE 802.3, auto sensing 1 × RJ45
- External Analytics Compatible Yes
- Network APIs NEXUS SDK, NEXUS CGI, ONVIF Profile S, G, T
- Streaming Resolution •VGA: 640 × 512 •QVGA: 320 × 256
- Supported Protocols IPv4, HTTP, HTTPS, UPnP, DNS,NTP, RTSP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP, IEEE 802.1X, ONVIF Profile G/T/S
Video & Recording
- IP Video Two independent H.265/H.264/MJPEG streams
- Local Storage Up to 2TB SD card (sold separately)

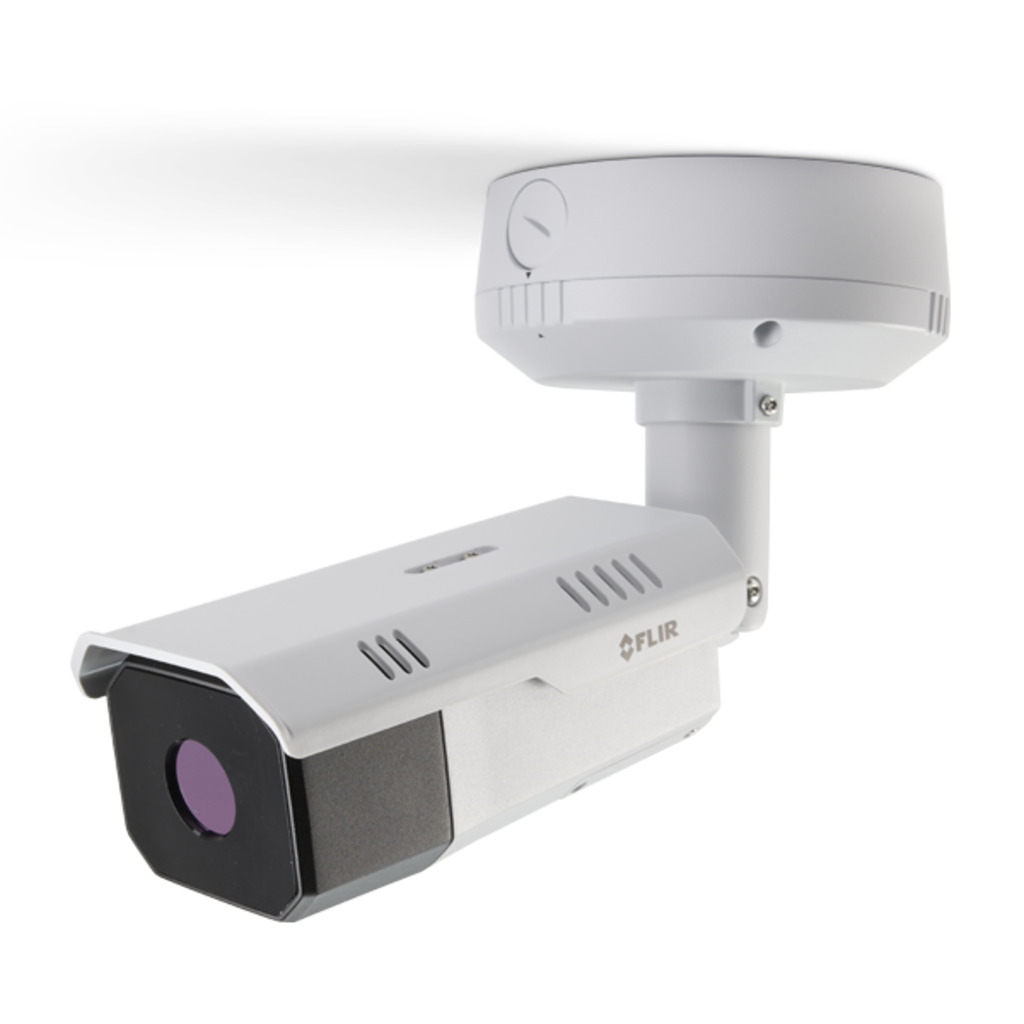

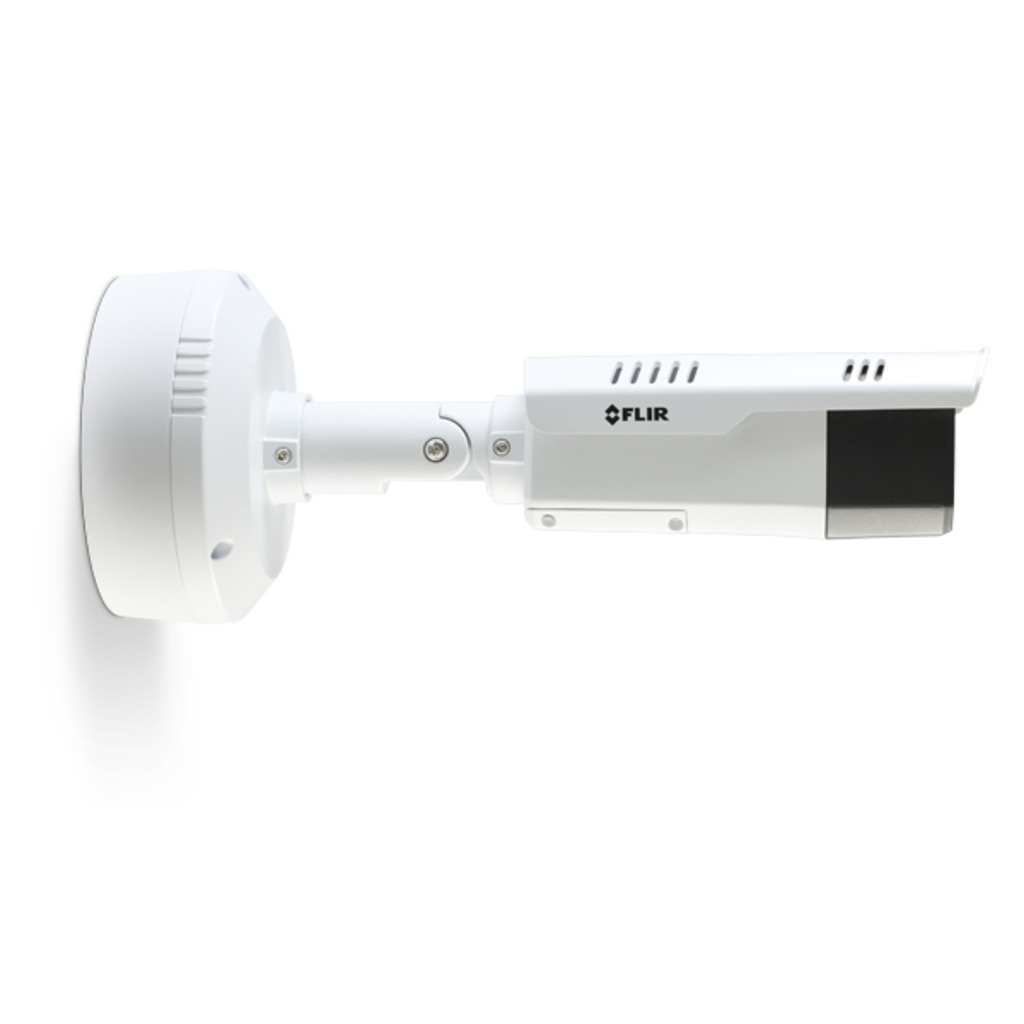

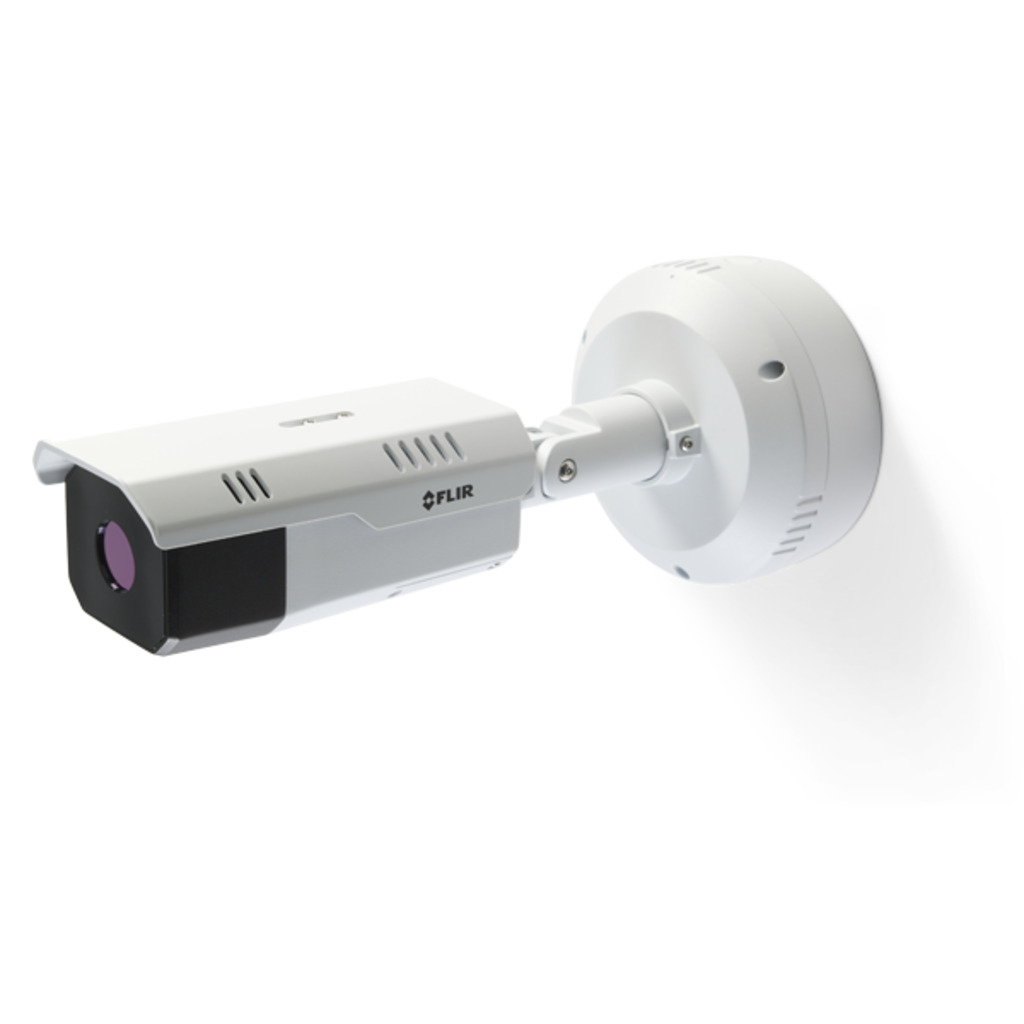

The FCB-Series AI thermal security camera turns noisy, cluttered sites into clear, dependable views your team can act on. With industry-leading thermal sensitivity (<20 mK), it visualizes objects through fog, drizzle, and night-time glare, so a person slipping between stacked containers or walking along a dark campus fence line doesn’t vanish in the shadows. Onboard AI analytics distinguish people and vehicles from swaying trees or rain on the lens, cutting the nuisance alarms that currently flood your VMS. Nexus-enabled geolocation and PTZ handoff let operators click on a target and follow it around corners, along the fence, or between buildings, while flexible lens options and an IP67 housing make it easy to cover awkward yard layouts, loading bays, and remote installations. This is a camera built for real sites, not lab conditions.
