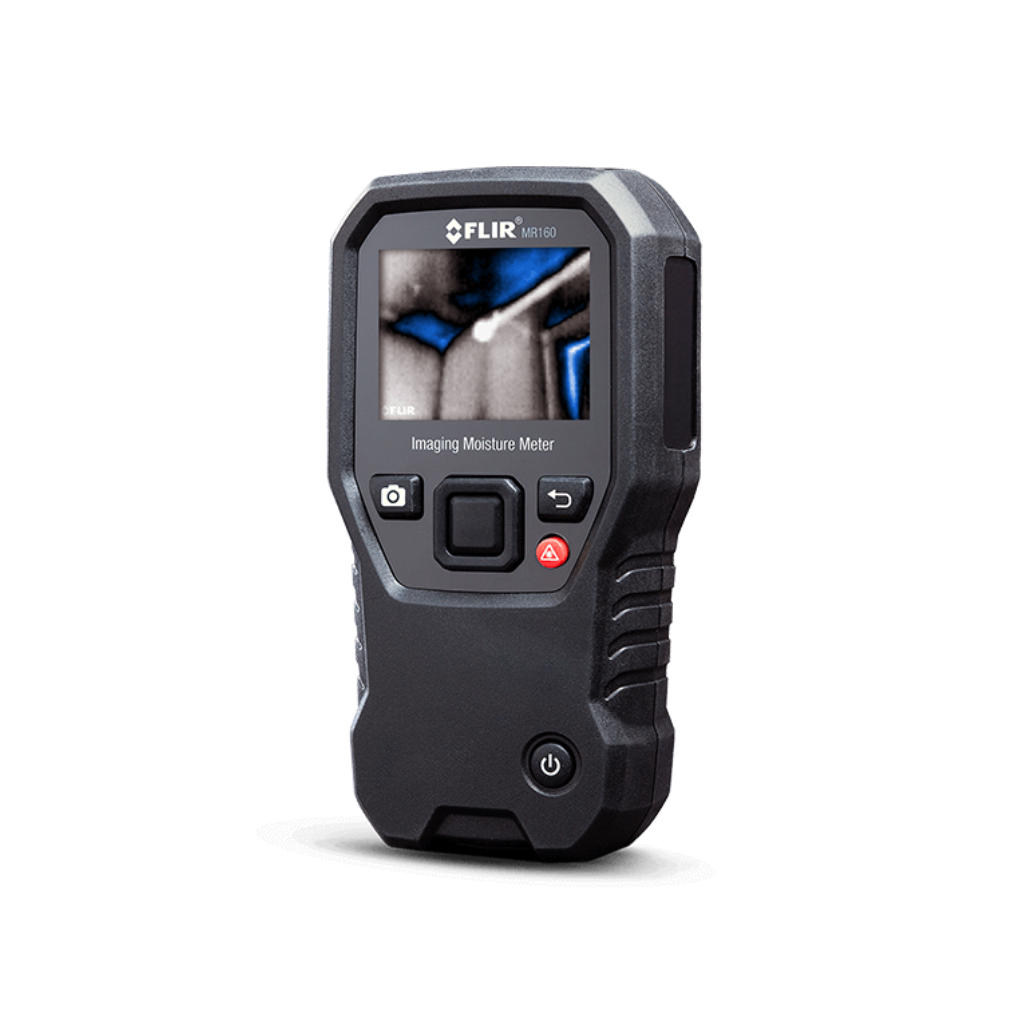

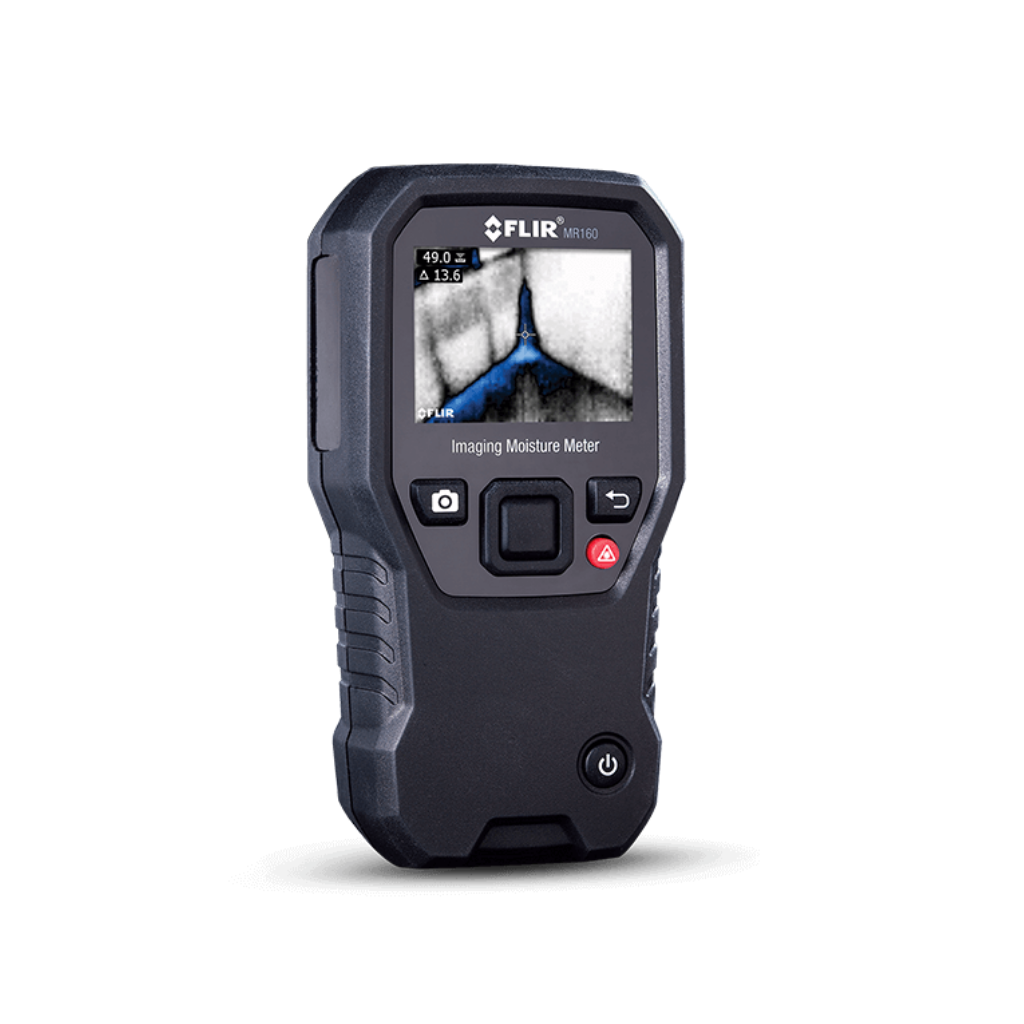

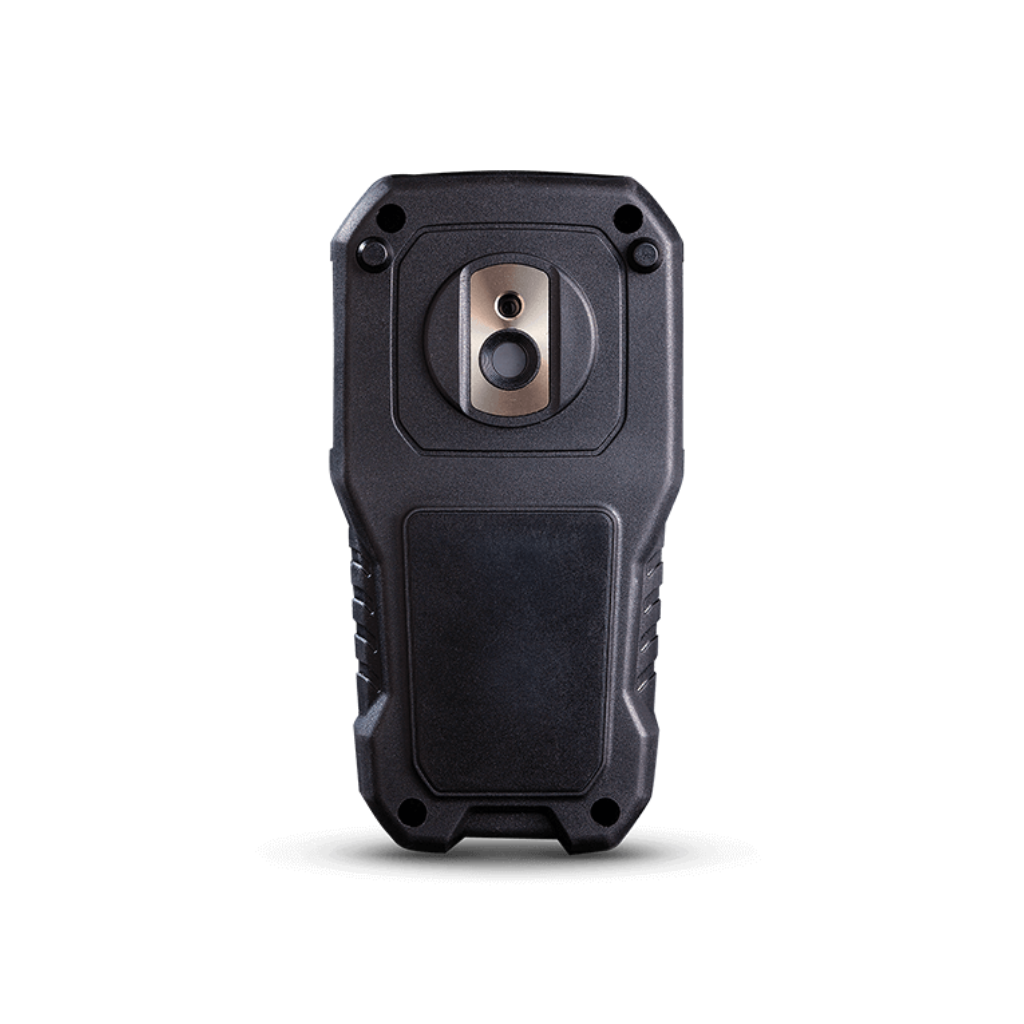

FLIR MR160

IGM™ Moisture Meter

FLIR MR160

IGM™ Moisture Meter

Featured Information

Thermal Image Resolution :

4800 pixels (80 × 60)

Pin Moisture Groups :

9 material groups

FLIR MR160

IGM™ Moisture Meter

Specifications

Thermal Image Resolution : 4800 pixels (80 × 60)
Pin Moisture Groups : 9 material groups

Measurement & Analysis

Image Calibration : Automatic
Image Frame Rate : 9 Hz
Measurement Resolution : 0.1
Pin Moisture Groups : 9 material groups
Pin Moisture via Ext Probe Range [Accuracy] : 0–100% WME (± 5%)
Pinless Measurement Depth : 0.75" (19mm) Max
Pinless Moisture Range : 0–100 relative measurement
Response Time Pin Mode : 750ms
Response Time Pinless : 100ms
Thermal Sensitivity : <0.15°C

Power

Battery : 3.7 V, 3000 mAh Li-ion rechargeable via micro USB
Battery power\Cont Run Time : 18 hours max
Battery power-Typical Usage : 4 work weeks
Power Requirements : Integrated rechargable battery

Environmental & Certifications

Agency Approvals : FCC class B, CE, UL
Certification Standards : EN61326 (EMC), EN61010 (battery + charger), EN60825-1 class 2 (Laser)
Drop test : 9.8’ (3m)
Warranty : 10 year

Imaging & Optical

Field of View [W x H] : 51° × 38°
Image Display : Color moisture alert
Laser Orientation : Single laser pointer to center of thermal image
Minimum Focus Distance : 10cm (4")
Spectral Response : 8–14µm
Thermal Image Resolution : 4800 pixels (80 × 60)
Thermal Imaging Detector : FLIR Lepton® microbolometer

Communication & Data Storage

Saved Image File format : BMP with measurement values overlaid
Stored Image Capacity : 9999 images

General

Dimensions (H x W x L) : QVGA (320 x 240 pixel) 2.3" 64k color TFT
Packaging Size : 12.1 cm x 14 cm x 33.1 cm

FLIR MR160

IGM™ Moisture Meter

Featuring Infrared Guided Measurement (IGM), the MR160 helps you quickly target moisture issues, visually guiding you to the spot where you can confidently take measurements and analyze readings. An integrated pinless sensor and an external pin probe provide the flexibility to take either intrusive or non-intrusive measurements. The MR160 can serve as your go-to troubleshooting tool right out of the box — or as the perfect complement to any high resolution thermal camera you already own.
