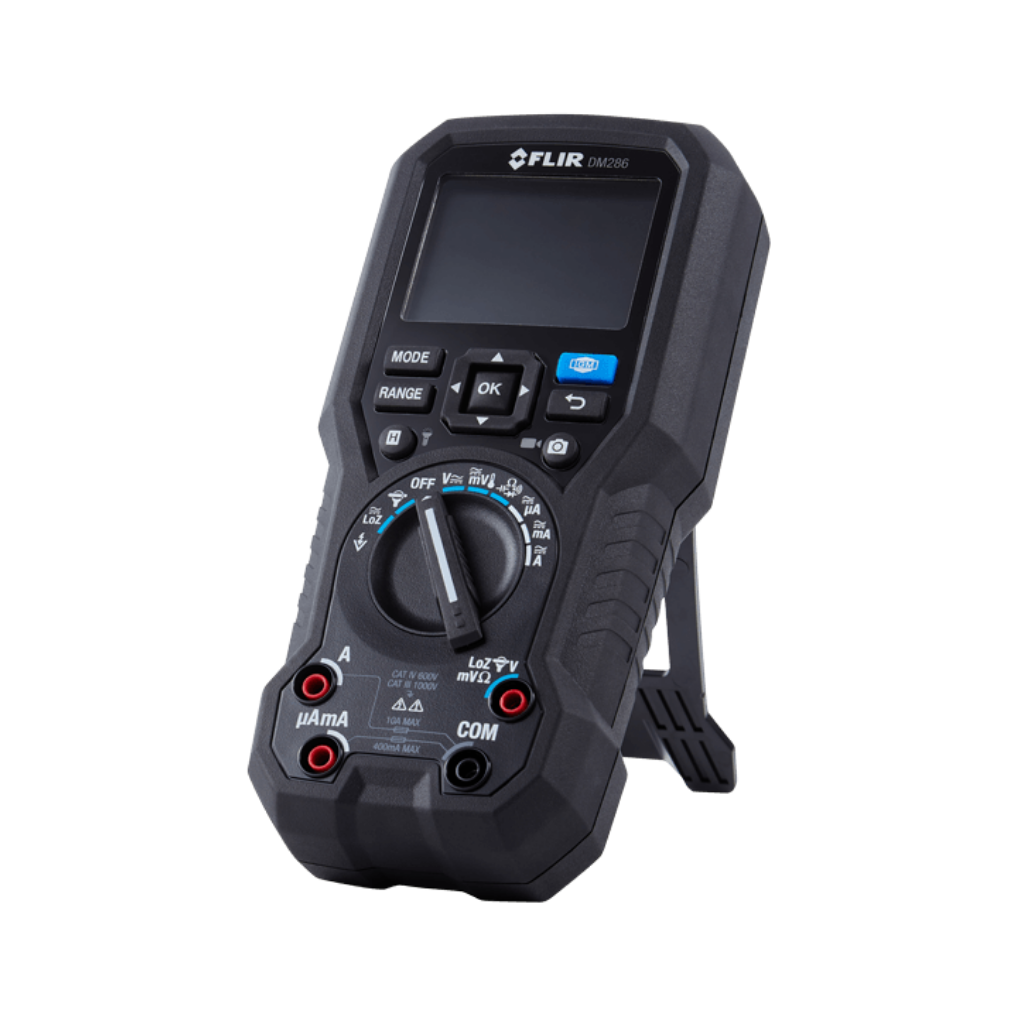

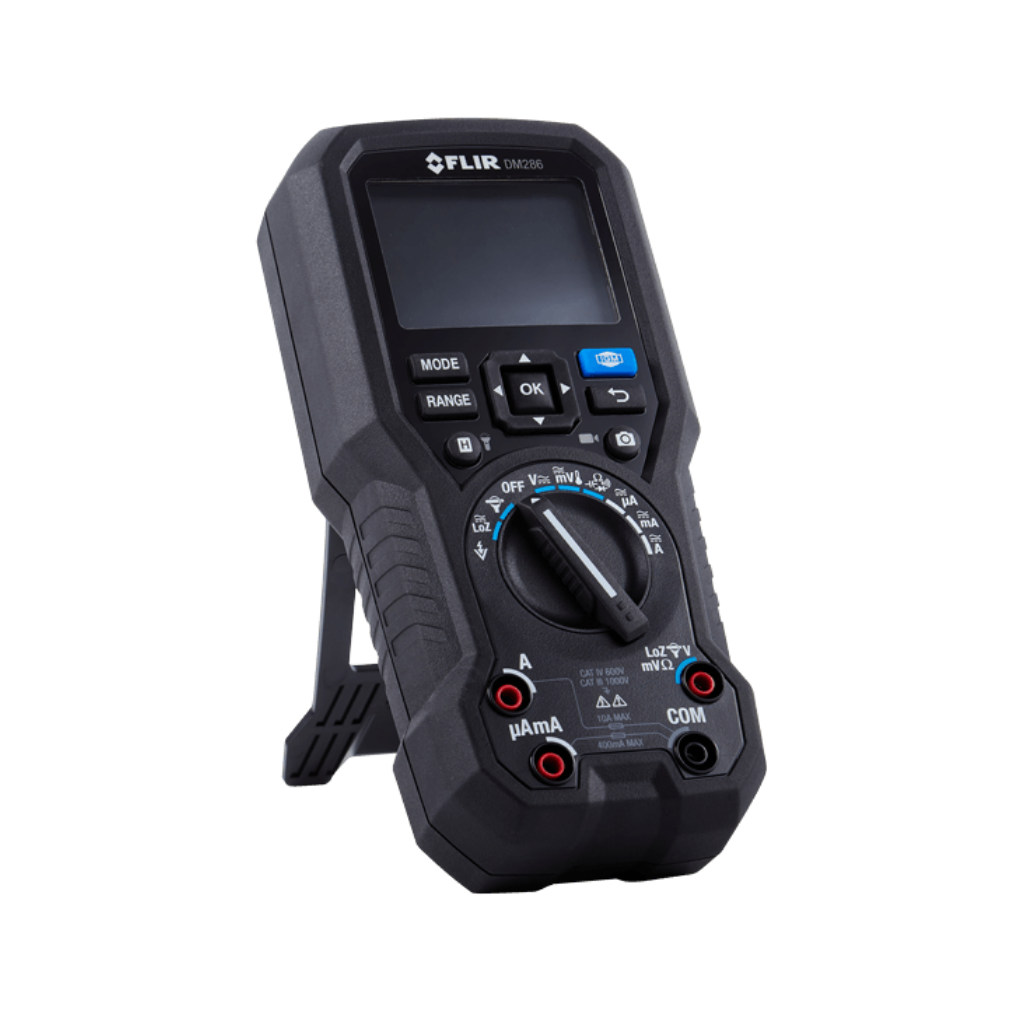

FLIR DM286
Industrial Thermal Imaging Multimeter with IGM™
Featured Information
IR Resolution :
160 × 120 (19,200 pixels)
Display Counts :
6000
AC/DC Voltage :
1000 V AC RMS ±(1.0％＋3) 1000 V DC ±(0.09%+3)
FLIR DM286
Industrial Thermal Imaging Multimeter with IGM™
Specifications
- IR Resolution : 160 × 120 (19,200 pixels)
- Display Counts : 6000
- AC/DC Voltage : 1000 V AC RMS ±(1.0％＋3) 1000 V DC ±(0.09%+3)
- AC/DC Amps : 10.00 A AC RMS ±(1.5%+3) 10.00 A DC ±(1.0%+3)
- Connectivity : Bluetooth BLE
- Visual Resolution : 2 MP (1600 × 1200 pixels)
- Measuring Rate : 3 samples per second
- Resistance : 6.000 MΩ ±(0.9%+5), 60.00 MΩ ±(3.0%+5)
- Temperature Accuracy : ±3°C (5.4°F) or ± 3% of the reading (whichever is greater) for temperatures > 25°C (77°F) ±5°C for temperatures -10°C to 25°C (14°F to 77°F)
- Temperature Range : –5°C to 300°C (23°F to 572°F)
- Temperature Resolution : 0.1°C (0.1°F)
- Temperature Type K thermocouple : -40°C to 400°C DMM ± (1.0% + 3°C) / IGM ± (1.0% + 5°C) (-40°F to 752°F DMM ± (1.0% + 5.4°F) / IGM ± (1.0% + 9°F)
- Thermal Sensitivity : 150 mK (0.15°C)
- VFD : AC V: 1000 V AC RMS, ±(1.3%+4) at 45∽65 Hz
User Interface
- Display : 2.8"
- Display Brightness : High, Medium, Low
General
- Dimensions (L x W x H) : 20 cm × 9.6 cm × 5.6 cm (7.9 in × 3.8 in × 2.2 in)
- Included : 1 x DM286 Industrial Thermal Imaging Multimeter 1 set of CATIV 600V Test Lead 1 set of CATIV 600V Alligator Clip 1 x Type-A to Micro-USB Cable (with Data transfer capability) 1 x K-type Thermocouple (-30°C to 260°C) 1 x Soft-sided carrying case 1 x FLIR Quick Start Guide 1 x FLIR Warranty Card 2 x TA04 Rechargeable Battery Cell
- Scanning Mode : Continuous scan. Crosshairs and laser pointer targeting.
- Weight : 569 g (1.25 lb) without battery (approx.)
- Worklights : x1 LED
- Pollution Degree : 2.0
- Safety : IEC 61010-1 CAT IV - 600 V, CAT III - 1000 V
- Storage temperature and relative humidity [RH] : -20°C to 60°C (-4°F to 140°F), 0–80% RH (without batteries)
- Warranty : Limited 10-Year Warranty https://www.flir.com/testwarranty
Imaging & Optical
- Color Palettes : Iron, rainbow, arctic, white hot, and black hot
- Field of view - visual : 71° × 56°
- Focus : Fixed
- Frame Rate : 9 Hz
- Image Modes : Thermal MSX (Multi Spectral Dynamic Imaging) Thermal Camera only Digital Camera only
- IR Resolution : 160 × 120 (19,200 pixels)
- IR Sensitivity 150 mK (0.15°C)
- Spectral Response : 8–14 µm
- Thermal Imaging Detector : FLIR Lepton® microbolometer
- Visual Focus and FOV : Fixed focus, 71° × 56° FOV
Measurement & Analysis
- AC/DC Amps : 10.00 A AC RMS ±(1.5%+3) 10.00 A DC ±(1.0%+3)
- AC/DC LoZ V : 1000 V AC RMS or 1000 V DC ±(1.3%+4)
- AC/DC mVolt : AC 600.0 mV ±(1.0％＋3) DC 600.0 mV±(0.2%+3)
- AC/DC Voltage : 1000 V AC RMS ±(1.0％＋3) 1000 V DC ±(0.09%+3)
- Calibration Cycle : Once per year, recommended
- Capacitance : 10.00 mF ±(4.0%+5)
- Continuity check threshold : 10–100Ω
- Diode Test : 1.500 V ± 0.9%
- Display Counts : 6000
- Frequency Counter : 100.00 kHz ±(0.1%+5)
Communication & Data Storage
- Communication Protocol : METERLiNK
- Connectivity : Bluetooth BLE
- Image File Format : Radiometric
- Storage : 40,000 readings per memory set
- Storage Media : eMMC 4GB
- Stored Image Capacity : up to 30,000
- Video Recording : 50 minutes maximum duration 20 seconds max duration for file transmission
Power
- Auto Power Off : For Meter: set to OFF, 2, 5, or 10 minutes For Worklight only: set to OFF, 5, 15, or 30 minutes
- Battery : TA04, Lithium Polymer Rechargeable, 3050 mAh. Two supplied.
- Battery life : Approx. 6.5 hours in IGM mode with display brightness set to medium. Approx. 10 hours in Multimeter mode (medium brightness)
- Non_Contact Voltage Detector [NCV] : Yes
Environmental & Certifications
- Certifications : ETL, FCC, CE, RCM, UKCA, FDA, EN60825, EN50689
- Drop test : 2 m (6.6 ft)
- Emissivity Settings : 0.10 to 1.00 (default is 0.95); select from four presets or set manually.
- IP Rating : IP40
- Laser Pointer Power : ≤0.39 mW
- Laser Type : Class I (red)
- Laser Wavelength : 640 nm to 660 nm
- Operating Altitude : 2000 m (6560 ft)
- Operating Temp & Humidity : -10°C to 30°C (14°F to 86°F), <85% RH 30°C to 40°C (86°F to 104°F), <75% RH 40°C to 50°C (104°F to 122°F), <45% RH
FLIR DM286
Industrial Thermal Imaging Multimeter with IGM™
The FLIR DM286 industrial imaging multimeter is the ultimate tool for electrical inspectors seeking a safe, accurate, and efficient way to identify, document, and share findings. With IGM™ (Infrared Guided Measurement) and MSX® (Multi-Spectral Dynamic Imaging), you can safely identify where hazards might be before contact is ever made. The powerful multimeter can capture and store up to 30,000 images and 100 log files, with the ability to record thermal and visual video clips. Stream live data in real time from the DM286 to your mobile device. Use the METERLiNK® app to quickly and efficiently capture readings, images, and videos for analysis, trending, and sharing.
