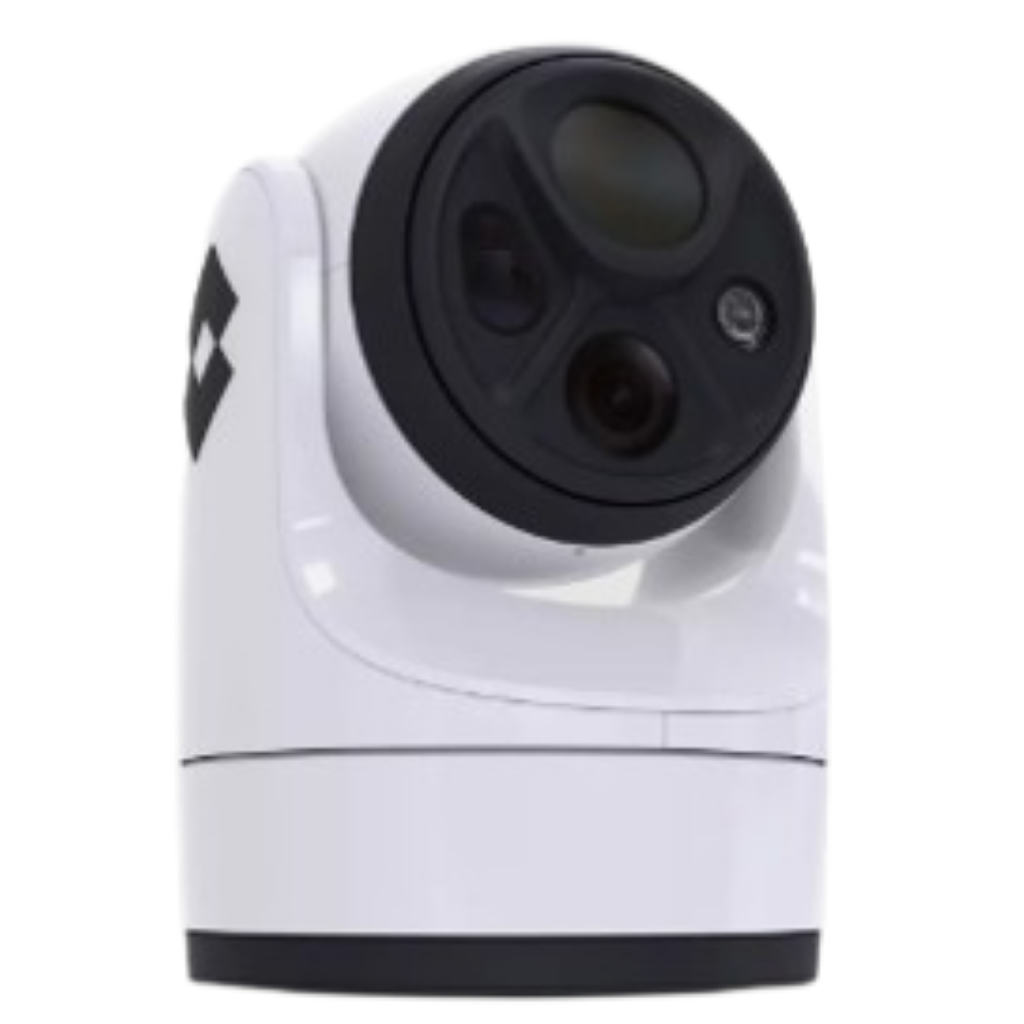

FLIR M560
Long-Range Elite Marine Thermal Camera System
.png)
.png)
FLIR M560
Long-Range Elite Marine Thermal Camera System
Featured Information
Supply Voltage :
12 to 24 volts DC (10.8V min to 31.2V max)
Current :
Peak 23 amps
Power Consumption :
230 Watts
FLIR M560
Long-Range Elite Marine Thermal Camera System
POWER
- Supply Voltage : 12 to 24 volts DC (10.8V min to 31.2V max)
- Current : Peak 23 amps
- Power Consumption : 230 Watts
ENVIRONMENTAL
- Operating Temperature : -25 °C to +55 °C (-13 °F to 131 °F)
- Storage Temperature : -30 °C to +70 °C (-22 °F to 158 °F)
- Relative Humidity : max 95%
- Automatic Window Defrost : Standard at power-up
- Water Ingres : IPX6 and IPX7
- Sand and Dust : IEC/EN 60529:1992+A2:2013 (IP6X) MIL-STD-810H
- Vibration : IEC/EN 60945:2002 (exposed)
- Altitude : MIL-STD-810H
- Lightning Protection and Wind : Near Strike at 2 kV / 100 knot (115.2 mph)
- EMC : IEC/EN 60945:2002 MIL-STD-461 / Section RE101
TARGET TRACKING
- AI Enhanced Detection and Classification : Yes (thermal and visible)
- Video Target Tracking Yes (thermal and visible)
- Radar Target Tracking : Yes (via NMEA 0183)
LASER SPOTLIGHT
- Beam : 2.2º
- Lumens: 1000 lm
- Max Illumination Range 1 km (0.25 lux)
THERMAL CAMERA
- Detector Type : Cooled MWIR InSb 640x512 Focal Plane Array
- Image Processing : FLIR Proprietary Digital Detail Enhancement
- Video Refresh Rate : 30 Hz
- Field of View : 1.9 ° to 2.8°
- Focal Length : 19 mm (Wide) to 290 mm (Narrow)
- Optical Zoom : 14.9× optic zoom
- Digital Zoom : 8× digital zoom
NETWORK and CONNCETORS
- Ethernet : 1x RayNet
- DeviceNet : NMEA 2000
- Bulkhead : NMEA 0183 Input Output
- IEEE Standard : Conforms to IEEE 802.3ab
SYSTEM SPECIFICATION
- Gyro Stabilization : Yes (three-axis)
- Digital Image Stabilization : Yes (visible camera only)
- Network Video Output : Four, independent H.264 network video streams
- Video Connector : BNC 6G-SDI output
- ONVIF Compliant : Yes Profiles S
- Pan and Tilt : 360° Continuous Pan, +/-90° Tilt
LASER RANGE FINDER
- Maximum Effective Range : 12 km (6.5nm) (Range performance depends on sea conditions and target size)
- Nato Target Range : 6 km (3.24nm) (Range performance depends on sea conditions and target size)
VISIBLE CAMERA
- Detector Type : 1/1.8-type CMOS
- Resolution : Up to 3840 x 2160 @ 30fps
- Minimum Illumination : .03 lux (ICR off, high sensitivity mode on)
- Zoom : 25× optik zoom
- Digital Zoom : 12× optik zoom
- Focal Length 6.5–162.5 mm
- Field of View 59° Wide FOV to 2.8° Narrow FOV
FLIR M560
Long-Range Elite Marine Thermal Camera System
The M560 is an elite AI-powered multi spectral camera designed for the most demanding marine applications. The camera goes beyond conventional thermal imaging by combining a superior FLIR cooled MWIR thermal sensor with a 4K ultra low-light visible camera, a 12 km ITAR-free laser rangefinder and a long-range laser spotlight. M560 integrates these powerful sensor payloads into a rugged 3-axis stabilized gimbal housing, offering unmatched situational awareness and long-range detection capabilities with best-in-class image stabilization.
